Manholes and chambers

Manholes and chambers

Telecommunication pipe chambers and manholes are manufactured in accordance with Telefónica requirements Specifications, and therefore possess the proper certifying technical qualification certificates.

This product's main benefits are its material quality guarantee and rapidity in work execution. Material is in stock, supplies are very fast, and work execution time is minimized, creating minimal bother to public street users.

Register chambers

They are formed by two reinforced concrete modules, the upper part supported on the lower part, screwed on and joined horizontally via a joint that ensures their stability and makes on-site assembly easy.

The upper face has a 0.90 m inlet diameter, where bunkers are stacked in order to attain the dimension required in the work. There are 15, 20, 25, 40 and 80 cm high chamber access bunkers and these can be stacked together.

There are three models available:

GABP-F Chamber

They have 2.90 x 1.90 x 2.50 (high) m mounted dimensions. The upper part weighs 5,560 kg and the lower part, 6,200 kg. They have 64 holes for cable pass-throughs.


GBR-F Chamber

They have 2.70 x 1.60 x 2.20 (high) m mounted dimensions. The upper part weighs 3,820 kg and the lower part, 5,190 kg. They have 32 holes for passage of cables.

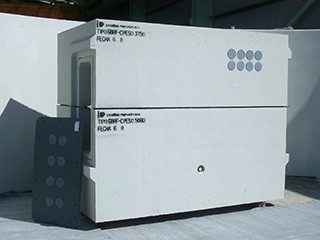

GBRF-C Tube

This chamber is designed to be installed in pipelines with existing cable. It has two crossways plastic plates that permit existing cable coupling.

The upper part weighs 3,750 kg and the lower part is 5,060 kg.

Register manholes

They are built from reinforced concrete and have the required cable pass through holes that indicate technical specifications and may have the concrete or cast iron cover.

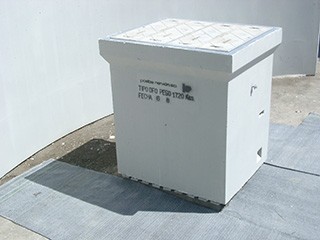

DFO / DFO-C type manholes

They are fibre optic passage manholes. Covers are made from concrete.

They can be used on pavements, pedestrian areas, parking areas and multi-level car parks (group 2-class B 125)

The DFO model is for new pipelines and the DFO-C is for existing pipelines.

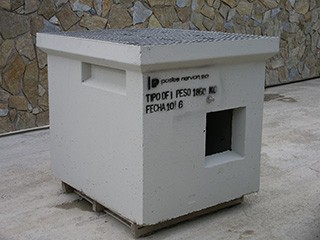

DF type manhole

They are manufactured in different load hypotheses: DF-I, DF-II and DF-III.

The DF model (DF-II and DF-III) can be used on pavements, pedestrian areas, parking areas and multi-level car parks (group 2-class B 125).

The DF-I model can be used in road pavements, hard shoulders, and parking areas for all types of vehicles (Group 4-class D 400).

Covers are made from concrete in the DF-II and DF-III models and cast iron for the DF-I model.

HF type manholes

Se fabrican en diferentes hipótesis de carga: HF-II y HF-III.

Pueden emplearse en aceras, zonas peatonales, áreas de estacionamiento y aparcamiento de varios pisos para coches (grupo 2–clase B 125).

Este modelo HF puede suministrarse con tapa de hormigón y de fundición.

MF Manholes

They can be used on pavements, pedestrian areas, parking areas and multi-level car parks (group 2-class B 125)

This model is supplied with a concrete cover.
